JIGUO SJG-1080 Semi-Automatic Blanking Machine 1080x780mm 100 Bar

Name: JIGUO SJG-1080 Semi-Automatic Blanking Machine 1080x780mm 100 Bar
Brand: Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. )
SKU: SJG-1080
Price: 26,000.00 USD
Availability: InStock

Markenbezeichnung:	JIGUO
Modellnummer:	SJG-1080
MOQ:	1
Preis:	$22000-$30000
Lieferzeit:	30
Zahlungsbedingungen:	L/C, T/T, MoneyGram

Einzelheiten

Beschreibung des Produkts

Einzelheiten

Herkunftsort:

China

Zertifizierung:

Verpackung Informationen:

Filmwicklung

Versorgungsmaterial-Fähigkeit:

Hervorheben:

semi-automatic blanking machine 1080x780mm

die cutting stripping machine 100 bar

JIGUO SJG-1080 blanking machine

Beschreibung des Produkts

JIGUO SEMI AUTOMATIC BLANKING MACHINE FOR VARIOUS MATERIALS INCLUDING BOXES OF DIFFERENT SPECIFICATIONS, WINDOWS, EURO HOLES (BUTTERFLY HOLES), AND FRONT/BACK IMPOSITIONS DIE CUTTING STRIPPING

Product Description

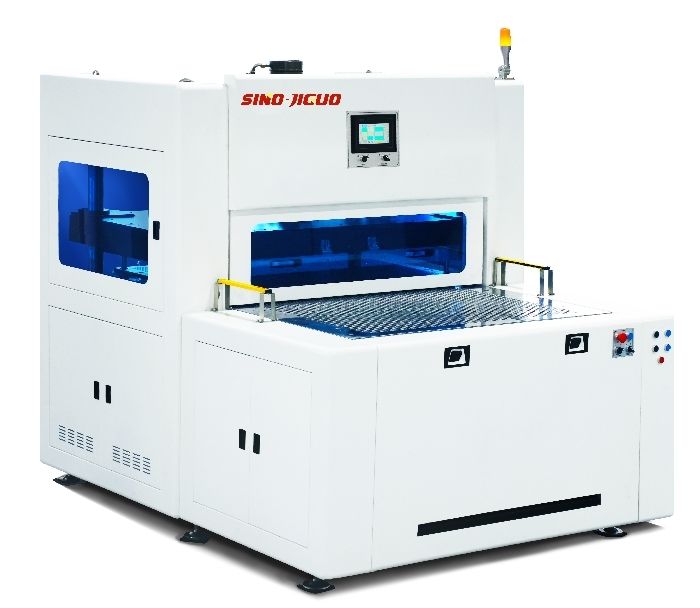

JIGUO SJG-1080 SEMI AUTOMATIC BLANKING MACHINE

Jiguo SJG-1080 semi-automatic waste stripping machine is a highly efficient waste stripping equipment that can perform one-time waste stripping on a variety of materials including paper boxes, windows, European-style holes (butterfly holes), front and back panels, etc.

Main Features

Demolding the entire panel in one go is simple and quick, significantly improving production efficiency.
Ejector-based placement allows for flexible handling of various production needs. No molds are required, significantly reducing operating costs.

High-precision linear guides and servo motors ensure smooth and precise movement.
The hydraulic system utilizes a variable-frequency motor and oil-cooling fan to ensure constant operating pressure.
The frame-type support base ensures precise blanking and ensures load-safety.

Multiple safety features, including a CE-compliant safety shield, a safety sensor switch at the feeder, and dual-button operation, ensure personal safety during operation.
A user-friendly retractable pedal and a user-friendly touchscreen interface make daily setup quick and easy.

Technical Specifications

Model	SJG-1080
Max.Stack size	1080*780mm
Min. Stack height	80mm
Waste Removal Speed	5Times/ming
Max.Pressure	100 Bar
Overall Dimensions	2100x1760x1660mm
Net Weight	2580kg
Supply Voltage	380V
Frequency	50/60Hz
Total Power	4kw

Optional Devices

Larger Platform Pedals
Receiving conveyor belt

Layout
